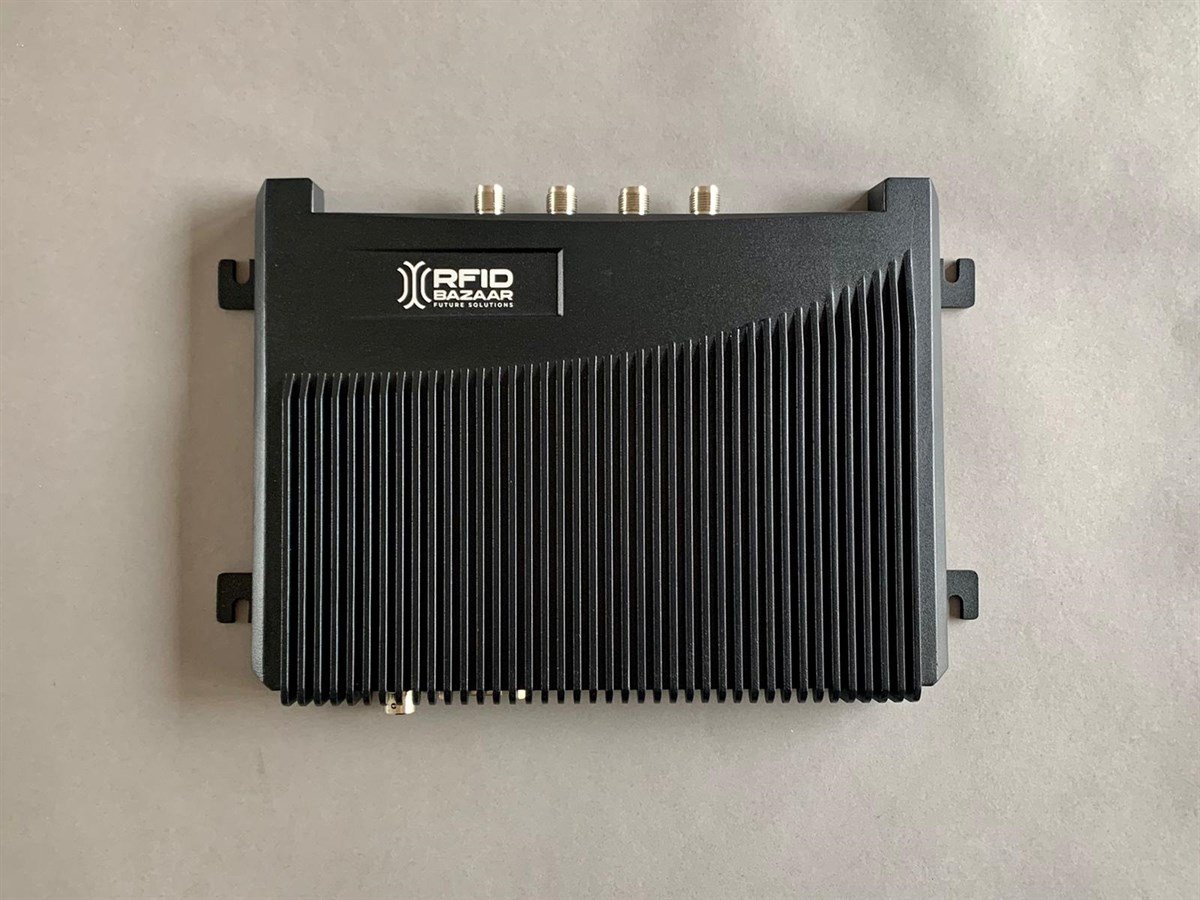

ROK300 UHF Sabit RFID Okuyucu / 4 Port
Product;
Data Terminal
Fixed Reader
Clothing
Library
Livestock
Retail
Mechanical Parameters
Body Material: Die-cast aluminum
Dimensions: 240*180*28mm
Weight: 1200g
Electrical Parameters
Input Voltage: DC 12V~18V
Operating Current: 700mA+/-5%@DC 12V Input
Standby Mode Current: ＜80mA
Sleep Mode Current: <100uA
Baud Rate: 115200 bps(Default and recommended), 38400 bps
Ambient Temp Monitoring: Supported
Communication Interface
Ethernet: 10/100Mbps Ethernet
Serial Port: 1 RS232 interface
GPIO: 2 Inputs, 2 Outputs
Application Environment
Operating Temp: -20℃~+85℃
Storage Temp: -40℃~+85℃
Humidity: 5%RH~95%RH（non-condensing）
Protection Grade: IP53
Heat Dissipation: Air cooling
UHF
Engine: Impinj Indy R2000
Protocol: EPC Global UHF Class 1 Gen 2/ ISO 18000-6C
Frequency: 865~868MHz / Optional 902~928MHz
Output Power: 0~33dbm
Peak Inventory Speed: ＞700pcs/s
Tag Buffer Mode: 500 pcs @ 96 bit EPC
Output Power Precision: +/- 1dB
Output Power Flatness: +/- 0.2dB
Sensitivity: ＜-85dBm
Tag RSSI: Support
Antenna Detector: Supported
Supported Regions:
China, Korea, Malaysia, Japan
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
Data Sheet - ROK300 Fixed RFID Reader
