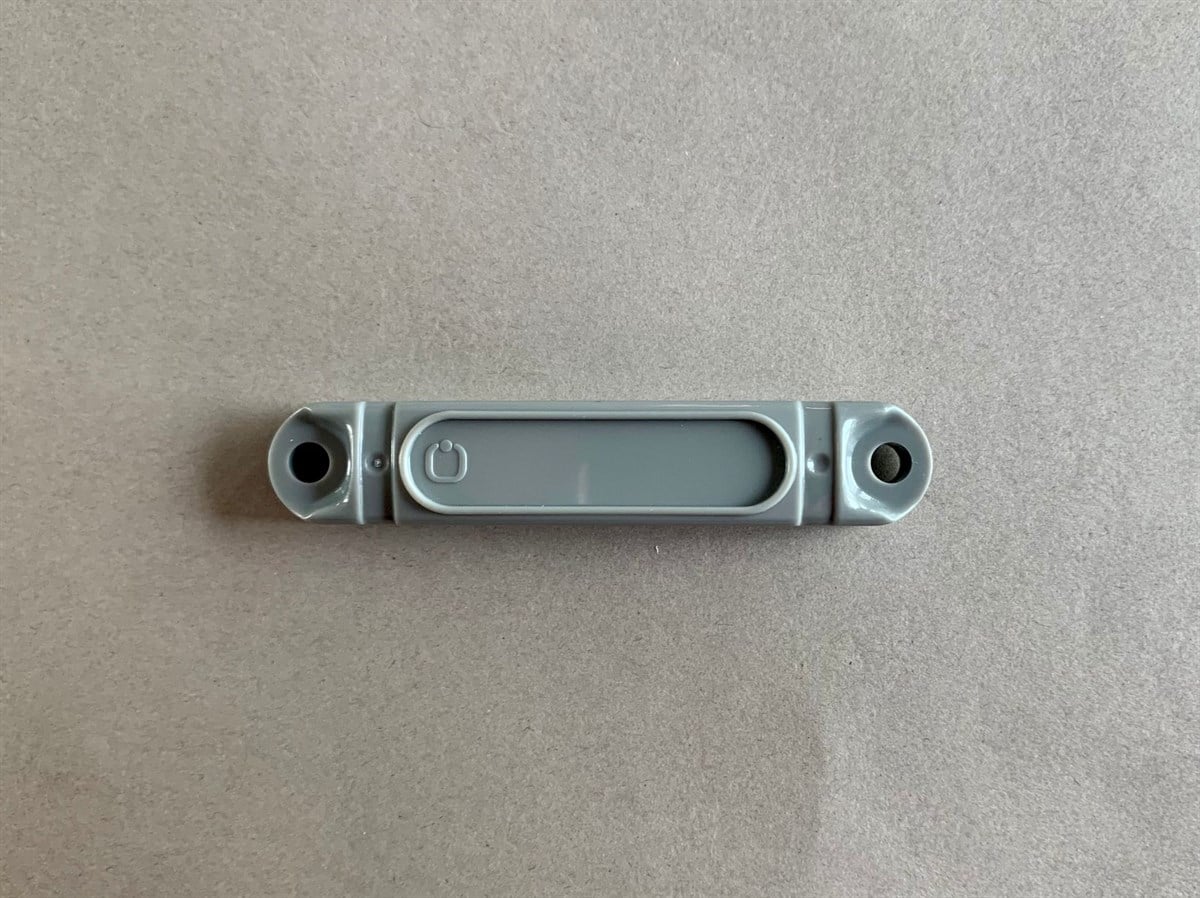

Omni-ID Exo 600 RFID Tag (061-GS-q10)

Omni-ID Exo 600 RFID Tag

Omni-ID Exo 600 is a small, high performance, global RFID tag designed to meet the diverse needs of logistics industries. With a small footprint it is well suited for attachment to metal bars commonly found on RTI’s. Exo 600 has a long read range and broad read angle for industrial and warehouse portal applications.

With a small footprint and high performance, the Omni-ID Exo 600 RFID Tag is ideally suited for RTI applications.

Features

* Well suited for attachment to metal bars.
* Long read range and broad read angle.
* Ideal for industrial and warehouse portal applications.

Product Details

ELECTRICAL:

Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (860-940 MHz)
IC Type: Impinj Monza 4QT™
Memory: EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Unique, randomized number
Max Read Distance: Up to 6 m (19.7 ft)
Applicable Surface Materials: Optimized for metal

MECHANICAL:

Tag Form Factor: Hard tag
Tag Materials: ABS rigid plastic
Attachment Method: Mechanical, film or foam adhesive
Dimensions with mounting holes: 80 x 15 x 12.2 mm (3.15 x 0.59 x 0.48 in)
Dimensions without mounting holes: 60 x 15 x 12.2 mm (2.36 x 0.59 x 0.48 in)
Weight with mounting holes: 12.5 g
Weight without mounting holes: 11.5 g

ENVIRONMENT:

Operating Temperature: -40° to +85°C (-40° to +185°F)
