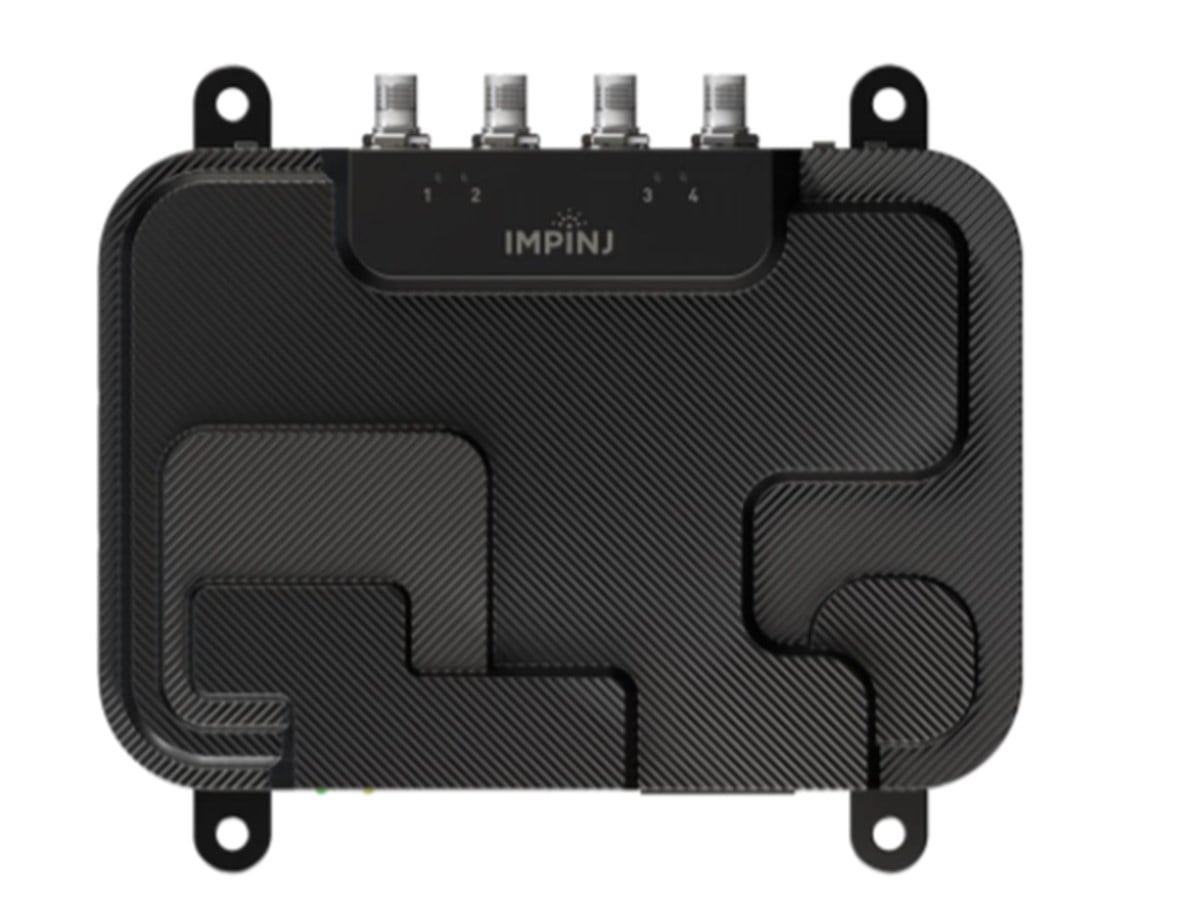

Impinj R700 RAIN Sabit RFID Okuyucu - 4 Port (IPJ-R700-241)

Impinj R700 RAIN Fixed RFID Reader - 4 Port

Product Details

ELECTRICAL:


Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Operating Frequency: UHF (865 - 928 MHz), region dependent
Transmit Power: +30 dBm (PoE), +33 dBm (PoE+)
Max Receive Sensitivity: -92 dBm
Max Read Distance: Not published
Max Read Rate: Up to 1,100 reads per second
Data Interface: RJ45, ethernet
GPIO: 3 out, 2 in optically isolated
Power Source: PoE (802.3af), PoE+ (802.3at) with LLDP for power negotiation

MECHANICAL:


Antenna Ports: 4 RP-TNC female ports (connects to RP-TNC male), expandable to 32 antennas with Impinj R700 Antenna Hub
Dimensions (Without Brackets): 213.36 x 149.86 x 30.48 mm (8.4 x 5.9 x 1.2 in)
Dimensions (With Bracket): 213.36 x 187.96 x 30.48 mm (8.4 x 7.4 x 1.2 in)
Weight: 0.96 kg (2.12 lbs)

ENVIRONMENT:


IP Rating: IP 50
Operating Temperature: -4°F to 122°F (-20°C to 50°C)

APPLICATION INTERFACE:

Host API: LLRP API or REST API
Demo Software: ItemTest
